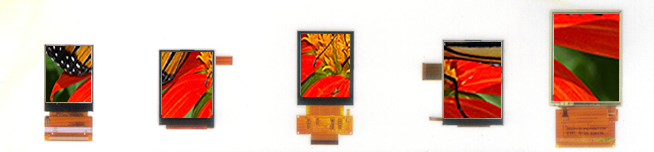

Color TFT Displays 1.8-in. to 2.8-in.

Products





Resources












More information

AMP Display offers a wide range of these models with a variety of featured options, RGB/MPU-interface controllers, Touch Panels and Semi-Custom options.
[Click here to view all models and download specifications.]


SIZE	1.8"	2.0"	2.2"	2.4"	2.83"
Resolution	128x RGBx 160	176x RGBx 220	240 x RGB x 320	240 x RGB x 320	240 x RGB x 320
Product	AM-128160H8	AM-176220Q5	AM-240320J	AM-240320L	AM-240320M7
Display Area	28.41 6(W) x 35.52(H)	31.68(W) x39.60(H)	33.48 (W) x 44.64 (H)	36.72(W) x 48.96(H)	43.2 (W) x 57.6 (H)
Module size (mm)	34.0(W) x 63.93(H) x 3.55(D)	51.35(W) x52.2(H) x 3.0(D)	40.1(W) x66.4(H)x 3.65(D	43.6(W) x 85.5(H) x 2.8(D)	50.0(W) x 98.5(H) x 3.0(0)
Display Color	65K / 262K	65K / 262K	)65K / 262K	)65K / 262K	65K / 262K
Back-Light	LED	LED	LED	LED	LED
Viewing Angle (U/D/L/R)	15,35,45,45	15,35,45,45	35,15,45,45	35,65,70,70	60,60,70,70
Power Supply Voltage (LCD)	2.8V	2.8V	3.0V	2.8V	2.8V
Power consumption	11.4 mW	14 mW	15 mW	16.8 mw	22.4 mw
Operating Temperature	-20 ~ +70	-20 - +70	-10 -+60	-10 -+70	-10 -+60
Storage Temperature	-30 - +80	-30 - +80	-20 - +70	-30 - +80	-20 - +70
Timing Controller	Built-in	Built-in	Built-in	Built-in	Built-in
LCD Controller	Built-in	Built-in	Built-in	Built-in	Built-in
Brightness	150	300	160	220	250
Contrast Ratio	200:1	300:1	200:1	200:1	300:1
Response Time	45ms	30ms	30ms	35ms	35ms
Interface	MCU	MCU	RGB/MCU	RGB/MCU	MCU
Mode	Digital	Digital	Digital	Digital	Digital
Touch Panel (T/P)	...	—		Option	Option
