AM800600L

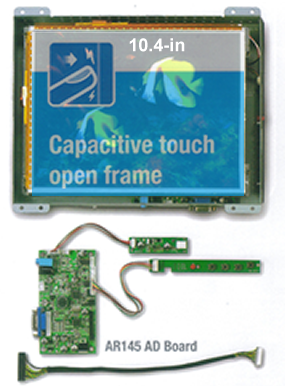

10.4-in Open Frame Color TFT LCD with Capacitive Touch Panel |
- Support Cover lens
- Better optical performance over 90% transparency
- Long life time over 2million times
- Support multi-touch
|
|
Display Specifications
|
|
Size
|
10.4"
|
unit
|
| Resolution |
800 x RGB x 600 |
|
| Display Area |
211.2(W)x158.4(H) |
mm |
| Pixel Pitch |
88 (W) x 264 (H) |
um |
| Overall Size |
260.0 (W) x 215.0(H) x 38.0(D) |
mm |
| Brightness |
360 |
cdm/2 |
| Viewing Angles |
130(H);110(V)(typ.) |
|
| Backlight Type |
LED |
|
| Display Colors |
262,144 |
|
| Viewing Direction |
12 o'clock |
|
| Display Mode |
Normally White |
|
| Sync Range/Hor/Vert |
30~80KHz/ 60~75Hz |
|
| Signal Connector |
15 pin D-Sub |
|
| Power Input |
12V DC |
|
| Touch panel Type |
Projected Capacitive |
|
| Touch Panel Input |
Multi Touch |
|
| Touch Panel Driver |
Built In |
|
| Interface |
USB |
|
|
